Devopower Pre-expanded cold shrink indoor and outdoor termination for 10KV , 15kV, 24kV and 36KV is designed to single core and 3-core cables. The termination body is made from high quality silicone rubber which has excellent mechanical, hydrophobic, non tracking and insulating properties. All silicone components are pre-expanded on an spiral supporting tube, and are designed for fast, easy and reliable installation. The extra long silicone stress control cone is integrated within the termination body which ensure correct installation. All of the indoor and outdoor pre-expanded termination meets requirements CENELEC HD 629.1 S1, IEEE-48,IEC60502.

Features

1 Easy and fast to install, no special tools needed;
2 Adapts to a wide range of cable size and types;
3 Extra-long stress control cone design, reliable insulation thickness;
4 Outstanding weathering, UV, Ozone, chemicals, fungi resistance;
5 Outstanding water repelling (Hydophobic);
6 Non-flammable;
7 Retains performance over wide temperature range from -45 to 150 °C

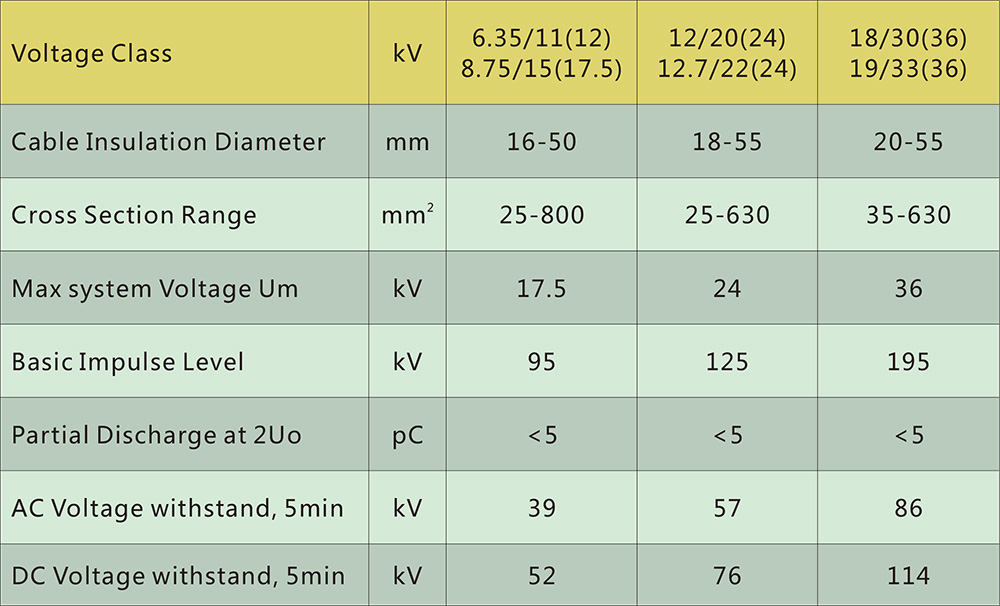

Technical Data

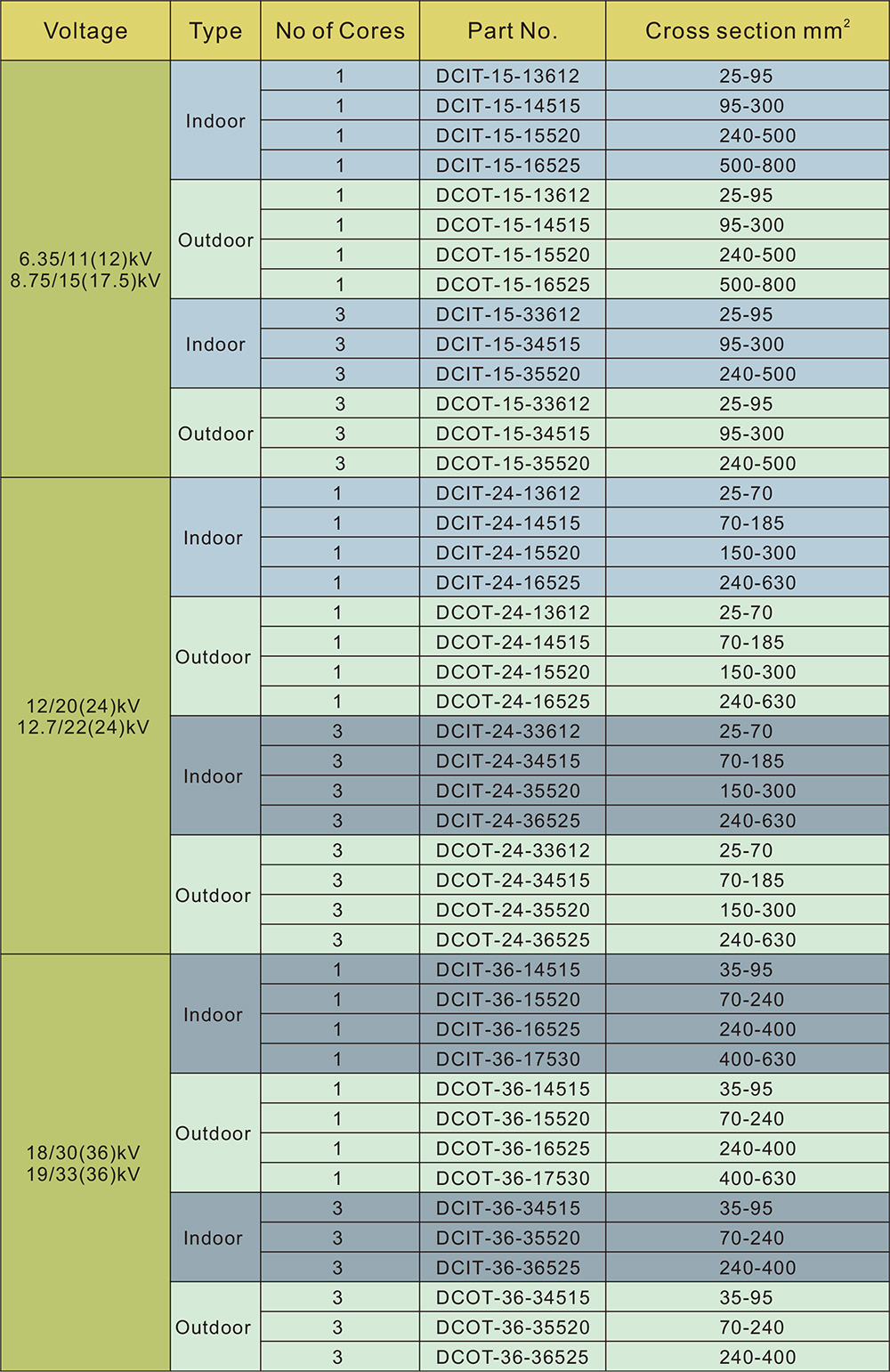

Selective Chart
